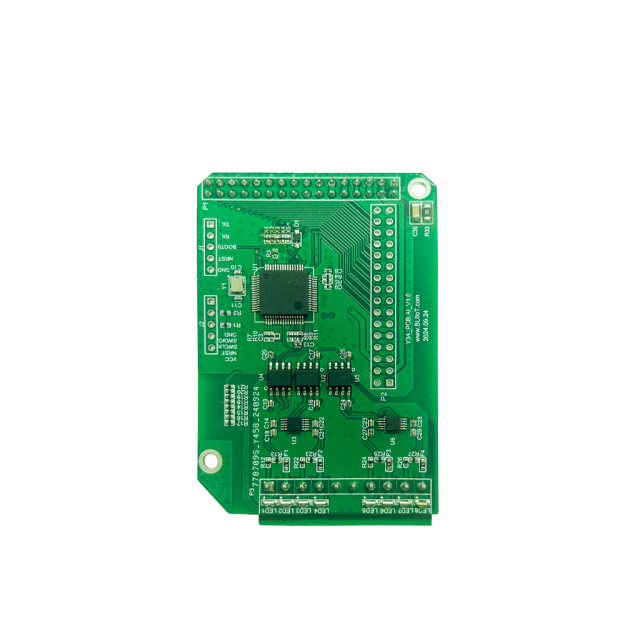

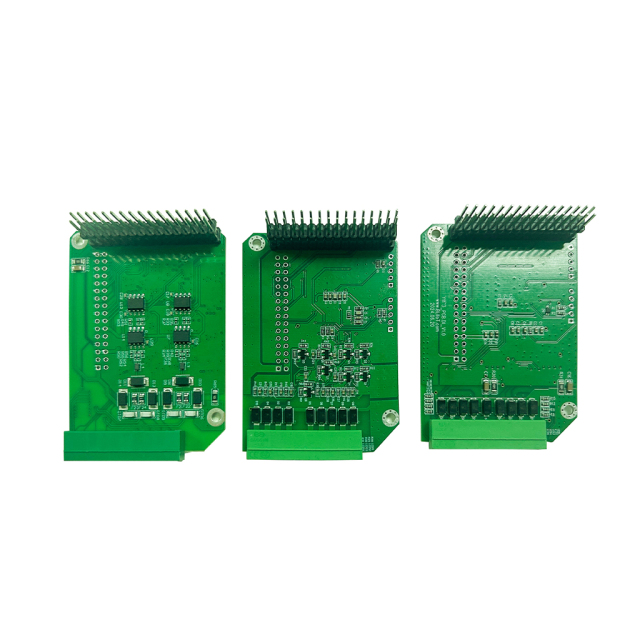

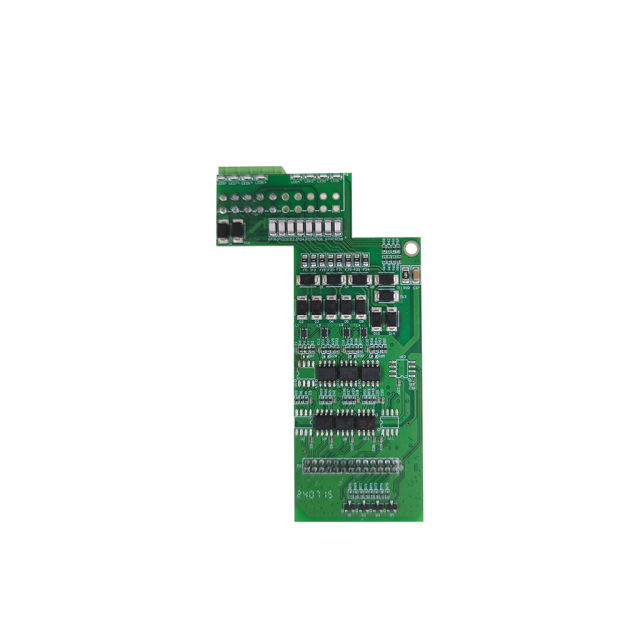

The Y34 voltage input module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 input channels, namely AI1, AI2, AI3, and AI4, and is designed to receive voltage control signals ranging from 0-5V and 0-10V from field devices, such as 4-wire voltage-type sensors.
The Y34 voltage input module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 input channels, namely AI1, AI2, AI3, and AI4, and is designed to receive voltage control signals ranging from 0-5V and 0-10V from field devices, such as 4-wire voltage-type sensors.
Each channel's input signal is electrically isolated and then converted into a digital signal, which is transmitted with 16-bit resolution.
Technical Specifications
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Voltage |
Internal Voltage |
|
Power Consumption |
0.12W |
|
|
Analog Input |
Channels |
4 channels |
|
Input Mode |
Differential Input |
|
|
Input Type |
0-5V/0-10V (4-wire) |
|
|
Resolution |
16Bit |
|
|
Accuracy |
±0.1 % FSR @ 25 ℃ |
|
|
Sampling Rate |
300 ms |
|
|
Input Impedance |
≥2kΩ |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
Model Selection
|
No. |
Name |
Model |
Channel |
Signal Type |
|
1 |
4-Channel Analog Input Module |
Y34 |
4 |
0 to 5V/0 to 10V |
|
2 |
4-Channel Analog Input Module |
Y36 |
4 |
-5V to 5V/-10V to 10V |

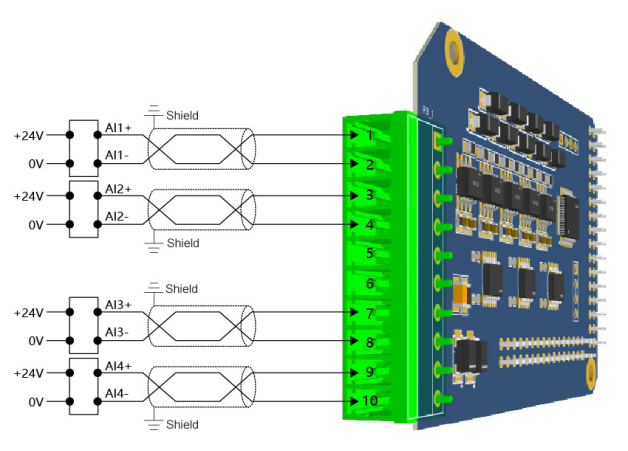

Connection Example
