The BLIIoT M110E Remote Input/Output Module is a robust industrial-grade data acquisition device designed for digital signal monitoring and control. It features a 32-bit MCU, dual 10/100M Ethernet ports and an RS485 interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols for seamless integration with SCADA systems, PLCs and IoT platforms.

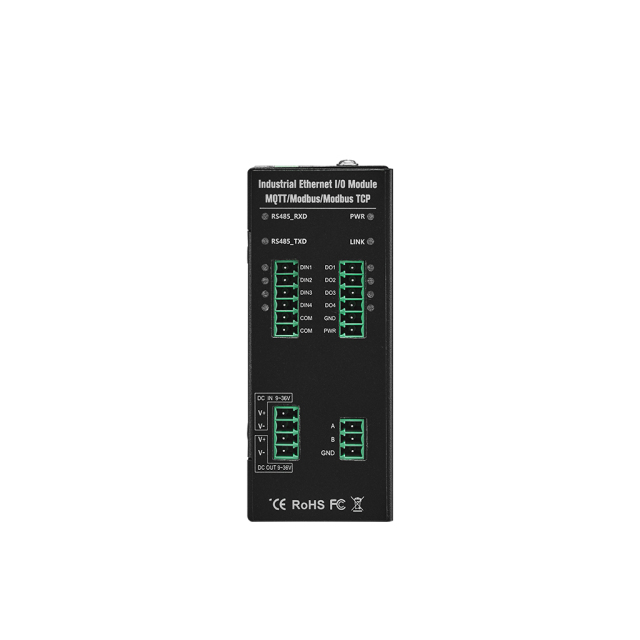

This Dual-Ethernet I/O Module includes 4 digital inputs and 4 digital outputs, functioning as both a digital input and output module. The DI channels support dry/wet contacts and pulse counting (up to 1kHz), while the DO channels use SINK output, with DO1 capable of high-speed pulse output (10Hz~300kHz). The module also supports register mapping to efficiently collect data from cascaded Modbus RTU devices via RS485, enabling fast TCP polling.
Operating on a wide 9~36VDC power supply with reverse polarity protection, the M110E provides an additional DC output (up to 1500mA) for external devices. Its metal enclosure, IP30 rating and support for DIN rail or wall mounting make it ideal for industrial automation, remote monitoring, and control applications.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
2 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
4 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
4 channels |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |

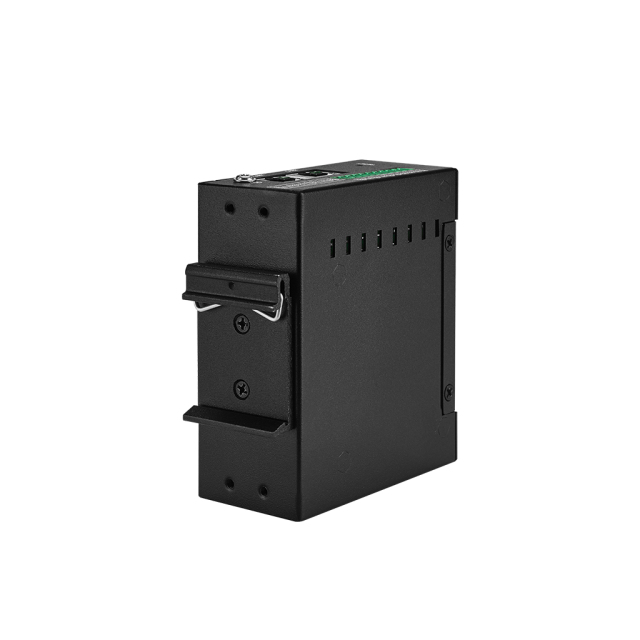

DIN rail mounted, Wall-mounted |
