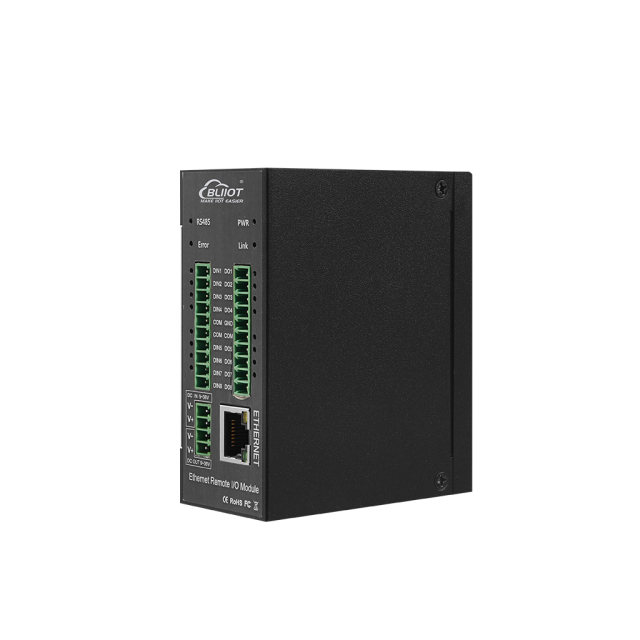

The M320T Industrial Remote I/O Module is an industrial-grade solution designed for high reliability, stability and precision data acquisition in harsh industrial environments. It integrates a 32-bit high-performance microprocessor and an embedded 10/100M adaptive Ethernet interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. This Industrial Remote I/O Module is widely used in industrial automation, security monitoring systems and automated measurement and control systems, with seamless integration into SCADA, OPC servers and other automation systems.

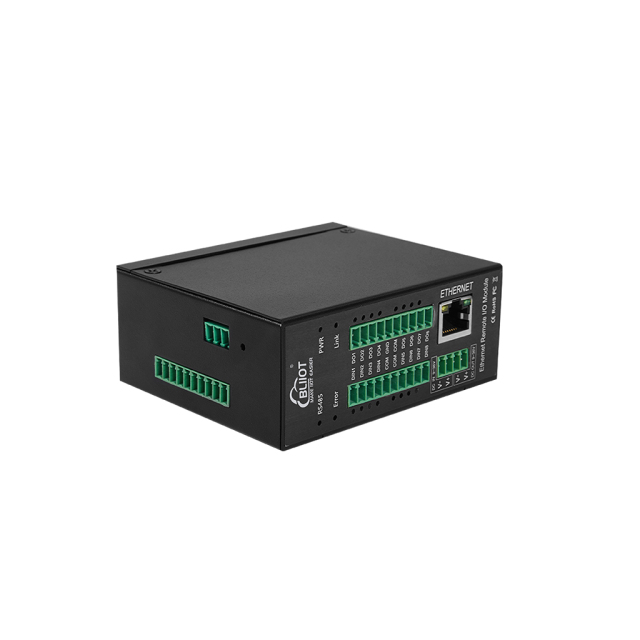

The M320T Industrial Remote I/O Module offers 8 digital output channels and supports high-speed pulse output (10Hz ~ 300KHz). It also includes an RS485 communication interface module, enabling the connection and cascading of Modbus I/O devices, reducing system complexity and saving costs. The built-in register mapping function ensures quick data collection, making it ideal for real-time industrial applications.
Operating within a wide voltage range of 9~36VDC, the M320T also provides a 9~36VDC power output for external devices, saving wiring costs. Designed with high protection industrial I/O module features, it offers surge, ESD and reverse power protection, ensuring reliable performance in demanding environments.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital output |
Quantity |
8 channels |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
