Name: 4-Channel GPIO General-Purpose Input/Output Module
Brand: Beilai Tech. Co., Ltd.
SKU: X16
Availability: InStock
Rating: 5 (1 reviews)

4-Channel GPIO General-Purpose Input/Output Module

No.X16

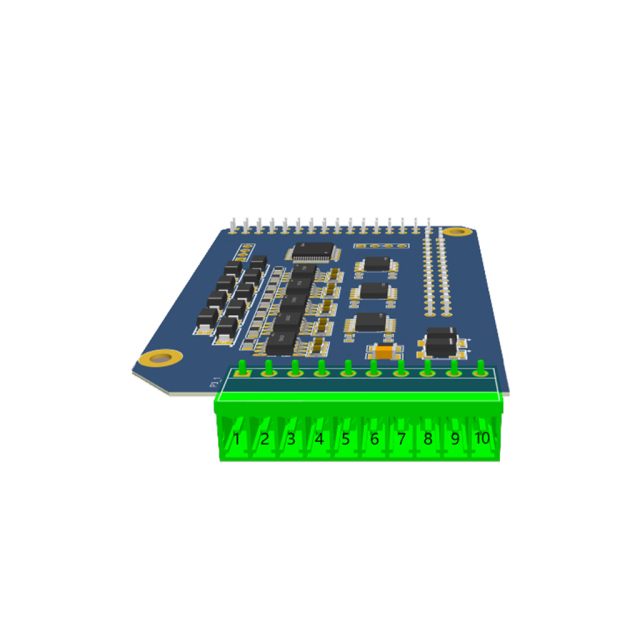

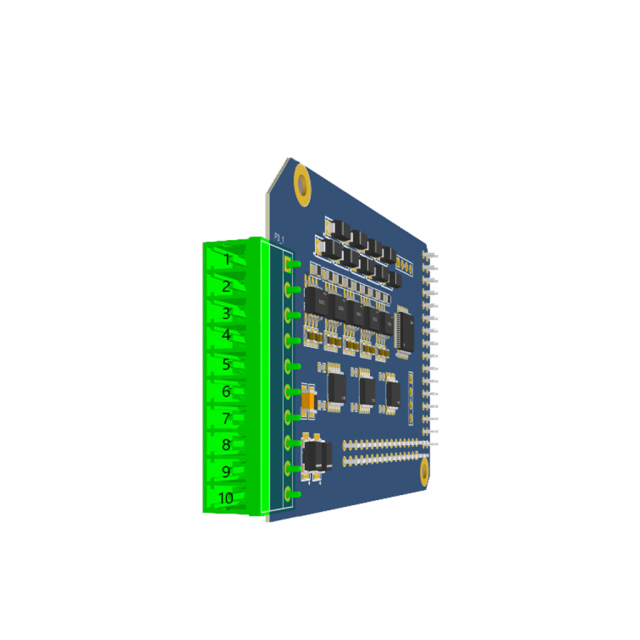

X16 is a 4-channel non-isolated GPIO module, part of the X series I/O modules for ARMxy industrial computers. GPIO is a flexible interface that enables devices like microcontrollers and embedded PCs to interact with external hardware. Widely used in embedded systems, the X16 module provides reliable and versatile I/O expansion for various industrial applications.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN

4-Channel GPIO General-Purpose Input/Output Module
